Sei ME603 Laser Cutting System

For Sale

Enquire

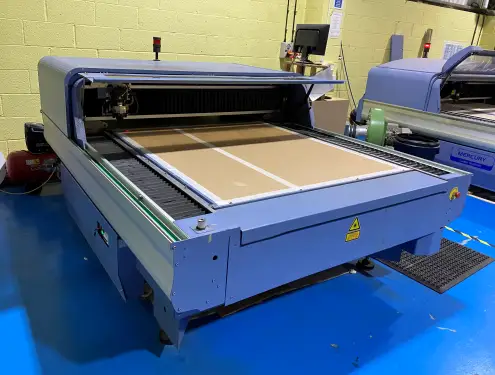

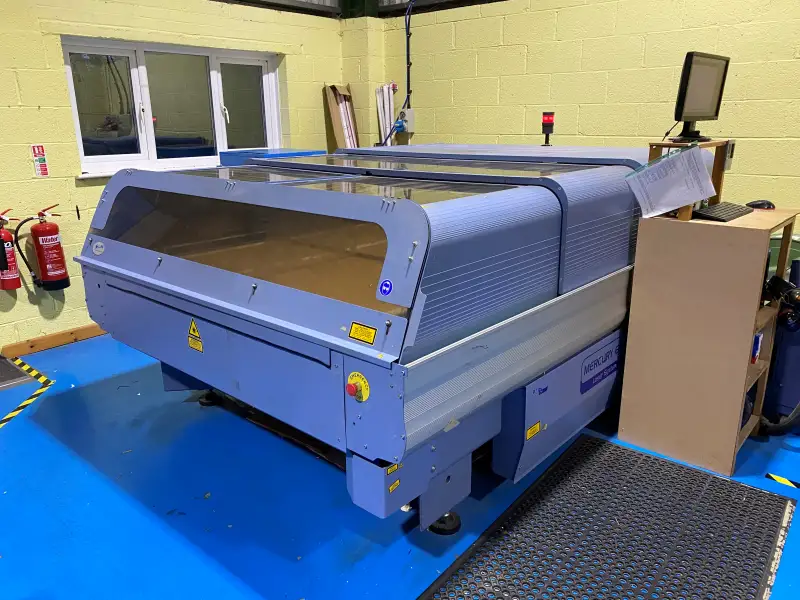

         SeI Mercury603 Laser Cutting System



         Cutting Bed Size 1500 x 2000mm

   Class 4 Product

·              Automatic Class 4 Cover (Software integrated)

·              UK Manufactured 200w Laser Source (Luxnar)

·              Low Laser Hours

·              Closed loop Chiller (low hours since replacement)

·              RED Diode pointer for positioning

·              Beam expander to guarantee divergence.

·              Full Flying optic system with Automated Z Axis

·              New Honeycomb 13 x 13 Grid Bed

·              Interchangeable focal Units

·              Linear High Quality Motors & Drives

·              5.5 KW 3Ph Vacuum Extraction Pump

·              Full Icaro Software Installed

·              Windows 10 PC included.

·              Network compatible.

·              Vector & Raster Modes

·              Accepts most CAD & Graphic Formats *.Plt,*.dxf,*.bmp,*.pcx +many more.

·              Full Alignment Toolkit Provided

·              All Optical Mirrors and Cutting Lens replaced recently

·              Machine Regularly Serviced

               Installation & Training can be arranged.

         Parts & on-site labour Warranties are available.
